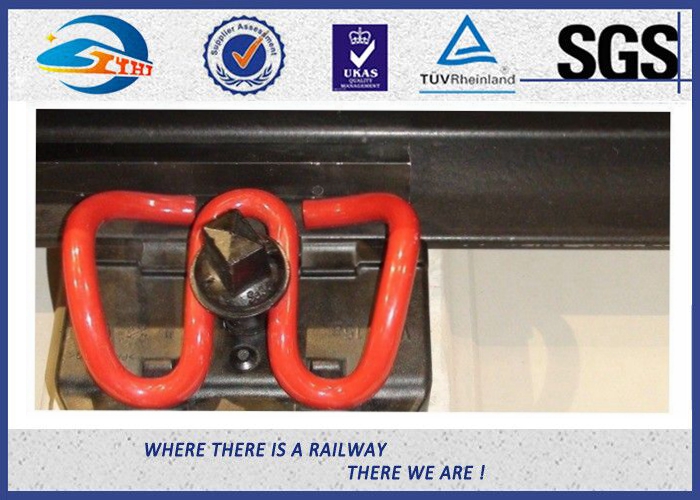

Vossloh SKL14 Tension Clamp/W14 Railway Fastening System
One set of Vossloh fastening system contains
A) Tension clamp Skl14 -2 units;
B) Screw spike Ss 35/Uls 7 -2 units;
C) Angled Guide Plate Wfp-14K12 -2units;
D) Plastic dowel -2 units;
E) Rail Pad Zw686a- 1 units;
F) Washer - 2 units
Technical Parameters
| Part name | Type | Material | Finish | Remark |
| SKL14 tension clip | Dia. 13mm | 60Si2CrA, 38Si7 | Plain oiled, color painting, or the other required ones. | Hardness: 42-47HRC
Fatigue test: When the clip spring deflection reaches 9.1mm and the swing deflection is 1.42mm, the fatigue life will be 5 millions cycles without breaking.
Standard: DIN17221, GB/T1222 |
| Ss35 screw spike | M24×150mm
M24 ×160mm
M24×180mm | Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45# | Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized | Standard: ISO898-1, UIC864-1 and NF F500-50 |
| Plain washer | Uls7 | Q235 | Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized | Standard: EN10025, EN10139 |
| Plastic dowel | For different sizes of screw spike | HDPE, Reinforced Nylon 66 (PA66) | Black, blue, yellow, green or other color | For insert into concrete sleeper |
| Guide plate | UIC54, UIC60, 50kg rail, 60kg rail, and other sizes as ordered | Reinforced Nylon 66 (PA66) | Black, blue, yellow, green or other color | Different designs are available. |
| Rail pad | UIC54,UIC60, and size as ordered | EVA, or rubber | Black, blue, yellow, green or other color | |
Produce Process
| Clip Production Process |
| 1 | raw material |
| 2 | shearing |
| 3 | heating to forging temperature (950-1000 degrees celsius) |
| 4 | forming |
| 5 | hardening |
| 6 | tempering below 350 degrees celsius |
| 7 | inspection |
| 8 | packing |
Surface Treatment
1.plain (oiled)
2.color paint
3.oxide Black (most choice)
4.Zinc
5.DHG
6.bitumenizing
7.wax
8.etc
Inspection machine
- Brinell Hardness Tester
- Carbon and Sulfur Analyzer
- Rockwell Hardness Machine
- Automatic Impact Testing Machine
- Metallographic Microscope
- Automatic High-speed Analyzer
- Fatigue Testing Machine
- Metallographic Specimen Polishing Machine
- Metallographic Specimen Pointing Machine
Package
in double-layer woven bags on wooden pallet
Or as customer’s requirement
Other Types
| Same series | SKL1 |
| SKL2 |
| SKL3 |
| SKL12 |
| SKL14 |
| General series | E type |
| Nabla type |
| KP / KPO type |
| Special series | PR type |
| Deenik type |
| Russian type |
| Fats clip |
| Gauge lock clip |
